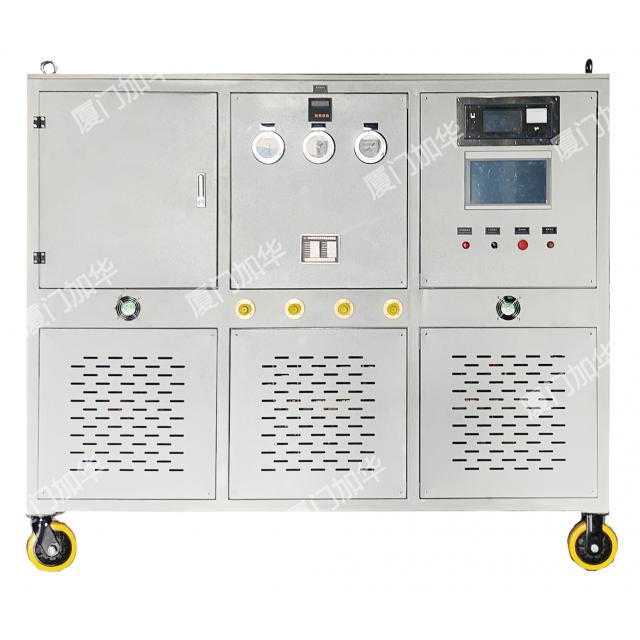

JHHS-11 SF6 gas recovery device
A compact, small-capacity, full-featured SF6 recovery device designed and manufactured for China's power industry and switch manufacturers, capable of completing all the functions of a large SF6 inflatable recovery vehicle, including gas filtration and drying
The entire recovery truck includes: vacuum pump, digital vacuum meter, SF6 compressor, regenerative filter dryer
The gas pipelines of the SF6 inflatable recovery vehicle are all connected with copper pipes, and the fully sealed technology is adopted to ensure reliable and excellent sealing between the pipelines
Vacuum meter | Digital vacuum gauge 0-100000pa |
Two-stage vacuum pump | 40m3/h, vacuum < 0.1mbar |
Displacement | 6.75m3/h |
Maximum exhaust pressure | 50 bar (set to 30-45 bar) |
Maximum inlet pressure | 10bar |
SF6 pressure reducer | 0-10bar |
